SONO DIS Ruggedized Mobile Display
Weatherproof display unit for SONO WZ and the SONO M1/M2 portable probes.
- One display across the portable range
- Aluminium housing rated IP67 for plant and site use
One display across the portable range

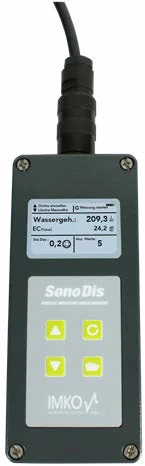

SONO DIS is a ruggedized mobile display unit for the SONO WZ concrete probe and the SONO M1 and M2 aggregate probes, in a robust weatherproof aluminium housing rated IP67.

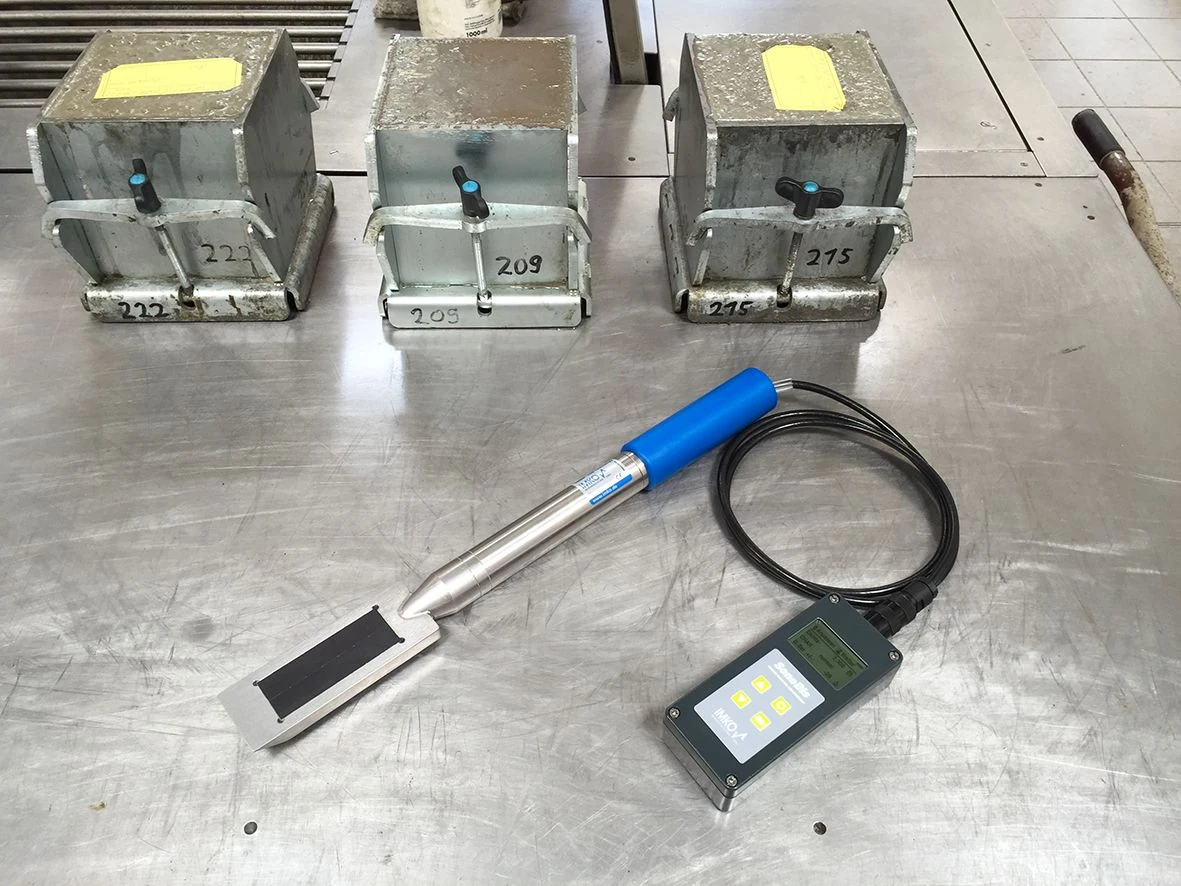

That compatibility is the point. A plant checking aggregate moisture at the stockpile and water content at the truck is doing two different jobs with two different probes — and one display.
Why the housing specification matters
IP67 means dust-tight and protected against temporary immersion. For an instrument that gets carried across a wet yard, set down on aggregate and used in the rain, that rating is not a marketing line — it is the difference between an instrument that lasts and one that fails in its first winter.
Aluminium rather than plastic housing follows the same logic. This is equipment that gets dropped.
What to buy it with

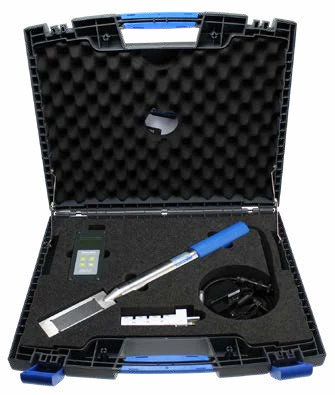

SONO DIS is supplied as a complete measuring case with the SONO WZ probe and a 12 V / 2 A plug-in power supply. If you already run an HD2 for aggregate work, the M1 and M2 probes will also run on a DIS, so a second display is usually only needed where two people need to measure at once.
| Compatible probes | SONO WZ, SONO M1, SONO M2 |
|---|---|
| Housing | Aluminium, weatherproof |
| Protection class | IP67 |
SONO DIS — frequently asked
Which probes does SONO DIS support?
SONO WZ, SONO M1 and SONO M2.
What is the protection rating?
IP67, in a robust weatherproof aluminium housing.
Is it sold with a probe?
It is available as a complete measuring case with the SONO DIS display, the SONO WZ probe, a plug-in power supply and the case.
Confirm the SONO DIS fits your material
Send your material, particle size and installation point. We will confirm the probe, the calibration and the output configuration before you order.
